Overview

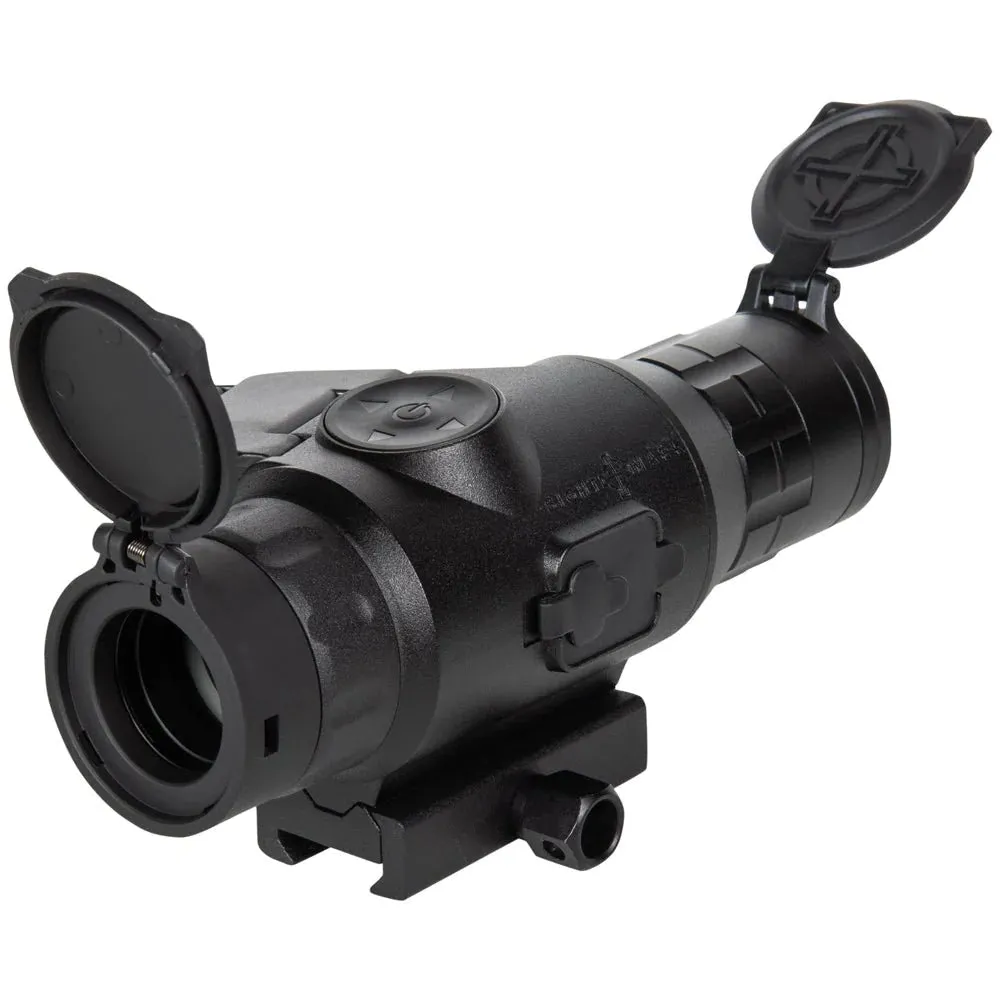

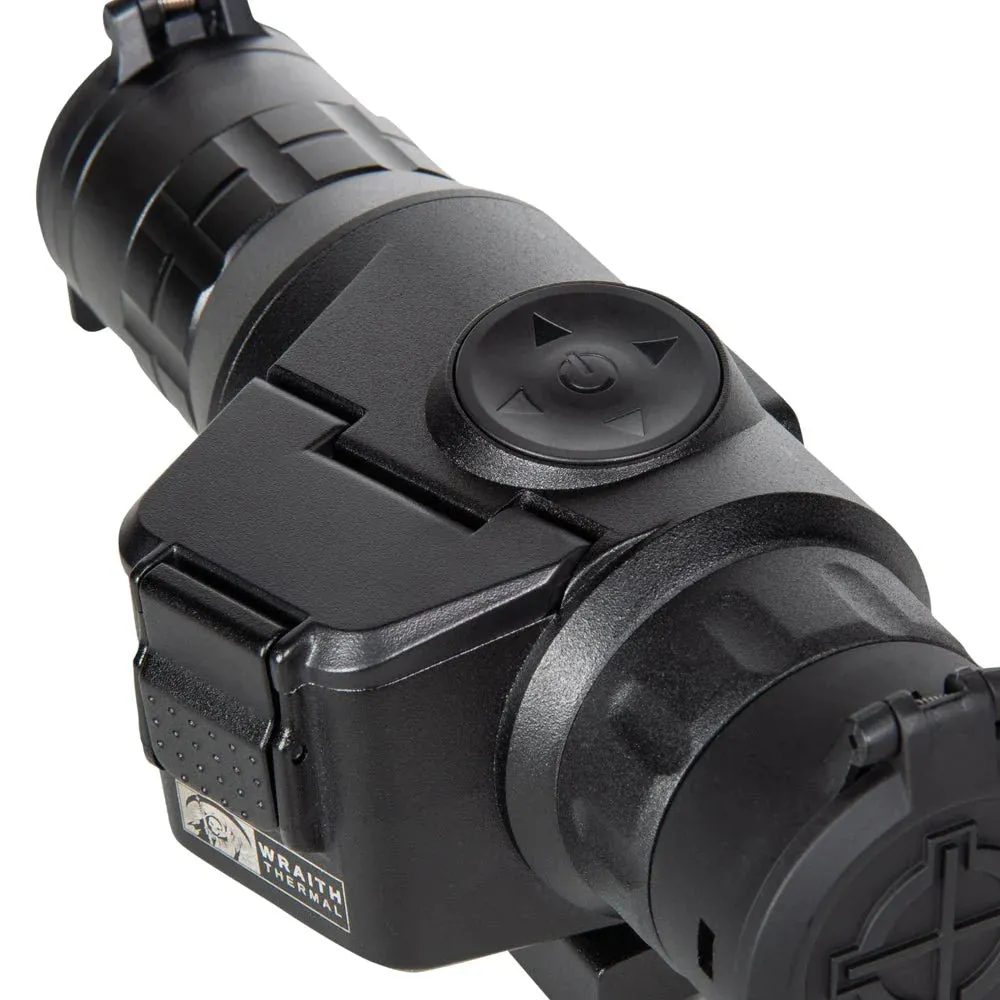

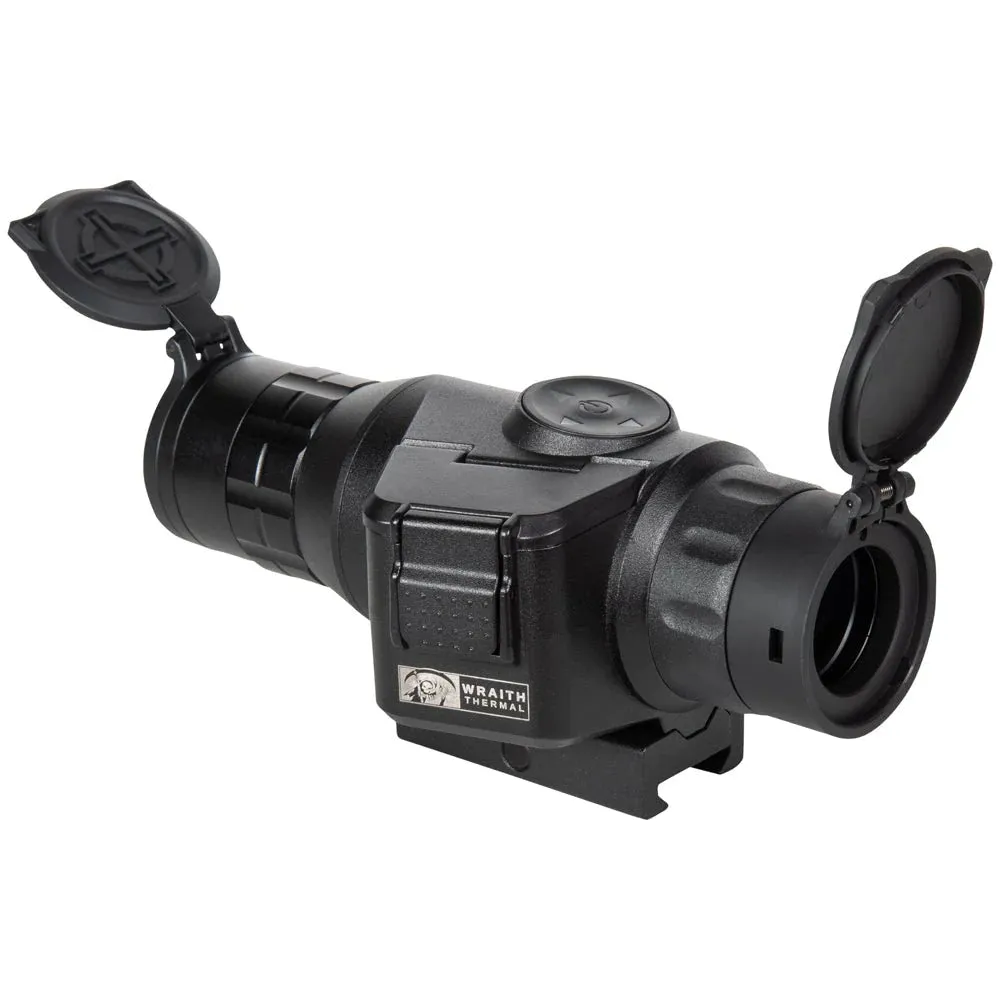

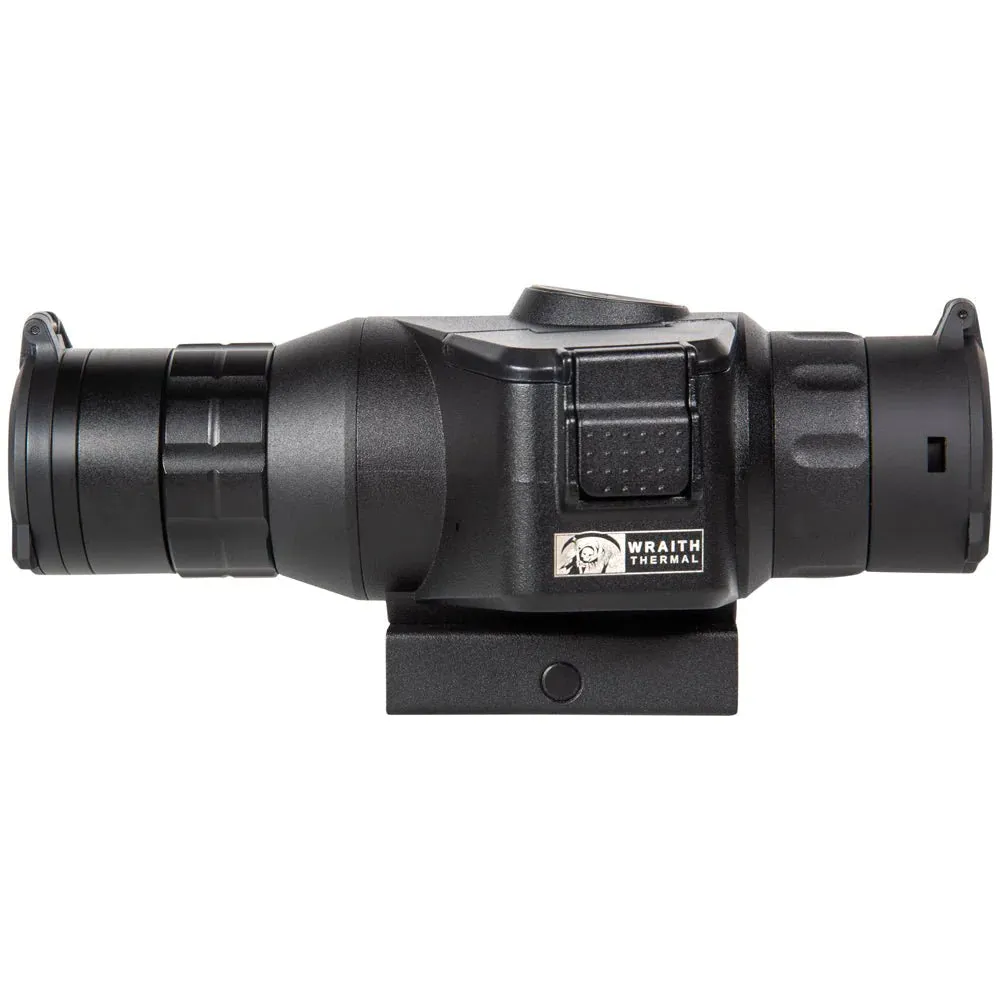

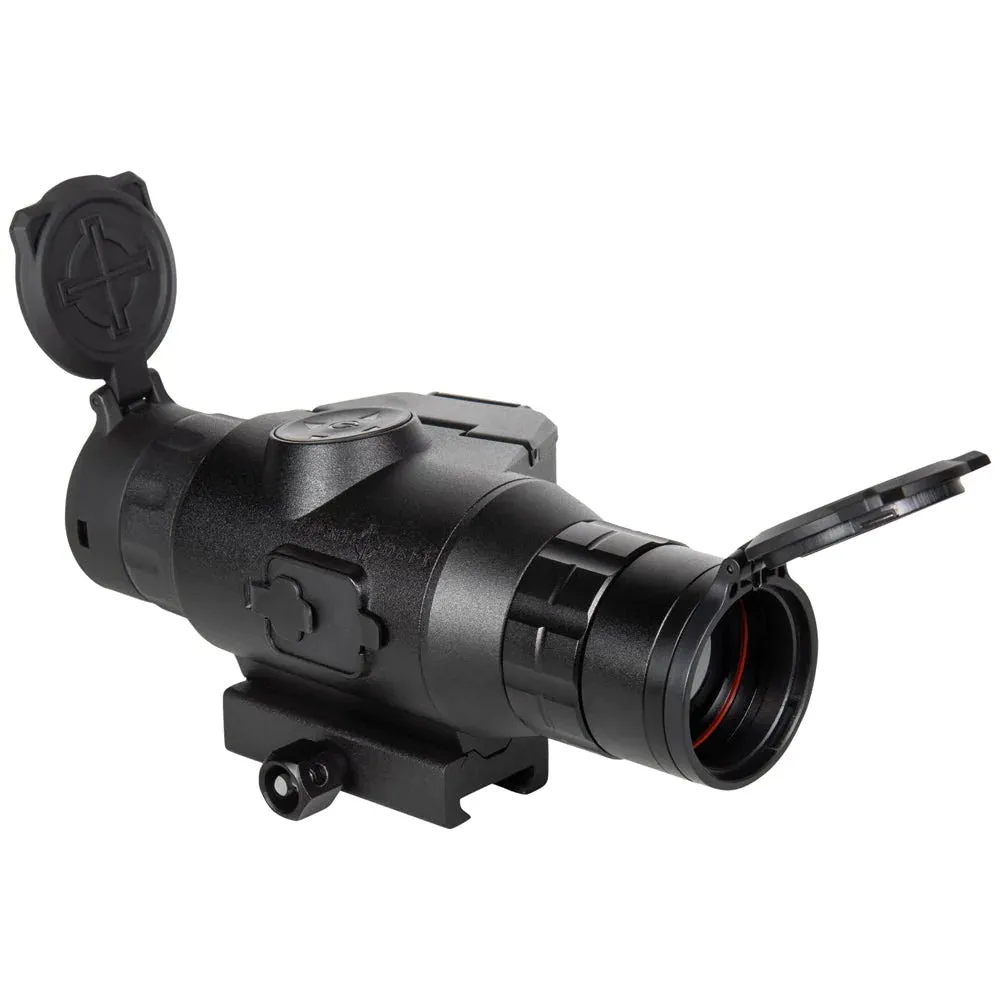

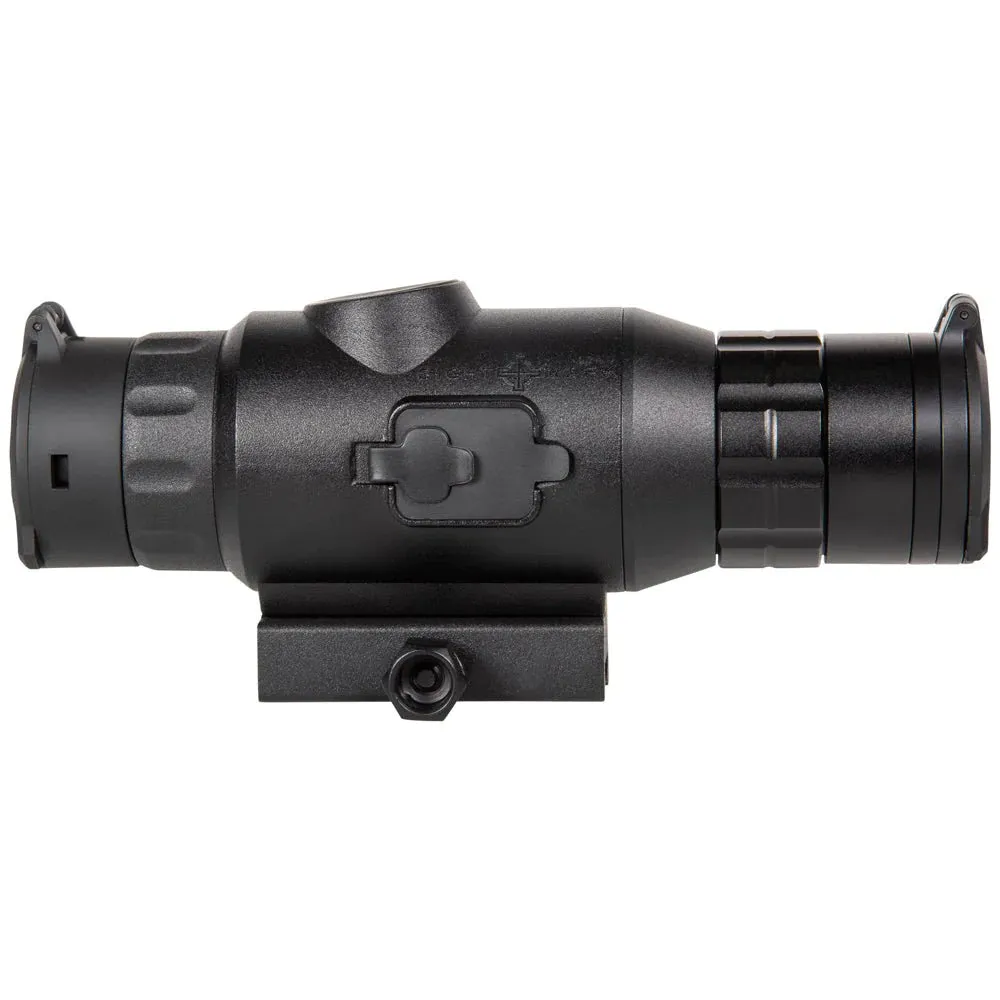

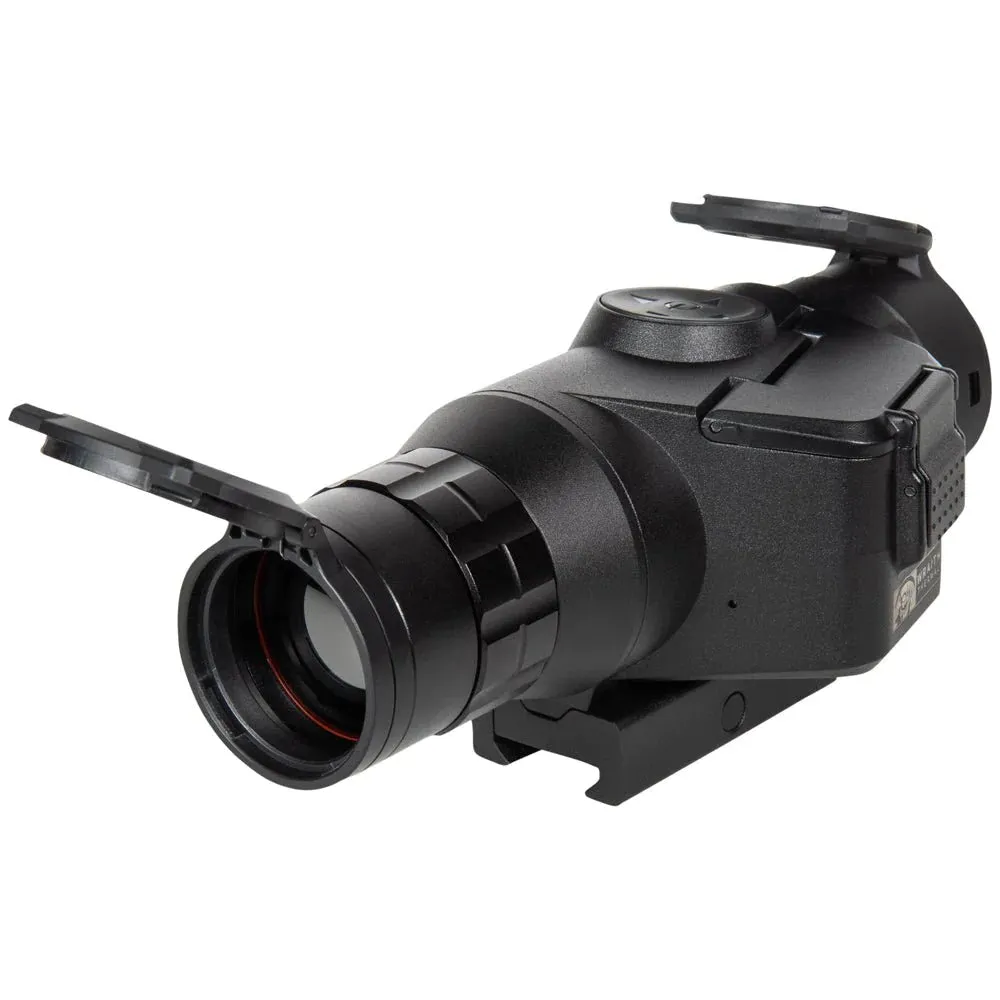

The Wraith Mini has evolved once again. Sightmark’s high performance digital night vision optic is now offered in thermal with the same peerless image quality, rugged durability and adaptability that customers have come to expect from the Wraith name.
No longer limited to digital day and night vision, the Wraith Mini 2-16x35 Thermal Riflescope can now harness the power of digital infrared through its 384x288 resolution thermal sensor to provide users with crisp images. With five thermal color palette modes and nine reticle colors to choose from, the Wraith Mini Thermal is perfectly suited for any time of day and any game animal.
The OLED display provides rich color and temperature operation while its five configurable weapon profiles allow it to hold multiple zeroes for different types of weapons, eliminating the need to re-zero the Wraith Mini Thermal every time it’s mounted on a different rifle.
Aside from these already impressive features, the Wraith Mini Thermal also comes equipped with a built-in camera with audio recording, capable of preserving the very best moments of a user’s hunt on a high-capacity memory card (256gb max).
The Wraith Mini Thermal boasts a 1400 yard detection range and 2x optical magnification with 1-8x digital zoom. Combined with its 1024x768 display resolution, this gives the Wraith Mini Thermal optimal image quality for close or medium engagements.
With rugged and dependable aluminum housing and temperature resistance from -4°F to 122°F, the Wraith Mini Thermal is designed for difficult outdoor environments and is built to last. With its battery life of 3.5 hours on video mode and 4.4 hours on preview mode as well as USB charging capability, the Wraith Mini Thermal is a necessity for night hunters everywhere.
Features
Wraith Mini 2-16x35 Thermal Riflescope Features:
- 384x288 thermal resolution
- lightweight and compact
- OLED display
- 5 color palettes (White Hot, Black Hot, Green Hot, Rainbow, Magenta)
- Built-in video recording with sound
- 8x digital zoom
- 10 reticle options with 9 reticle colors
- 5 weapon profiles

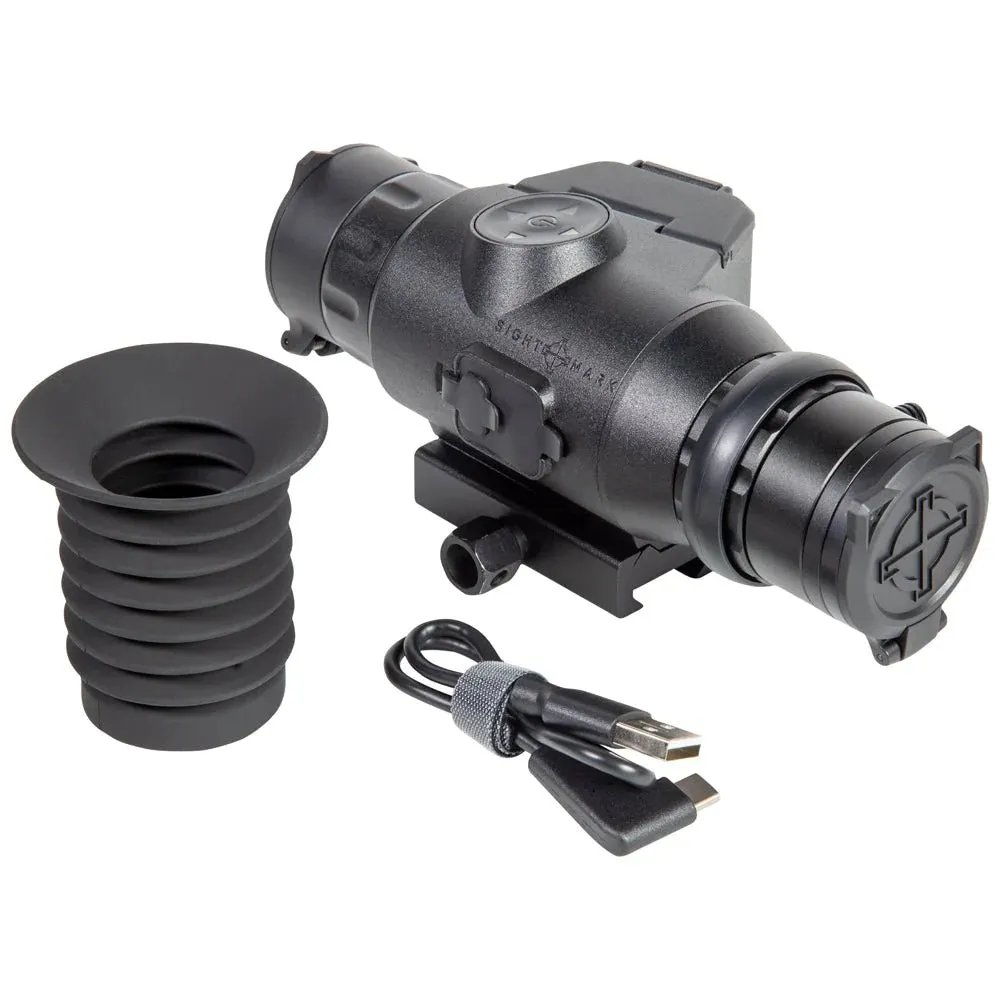

Included Accessories:

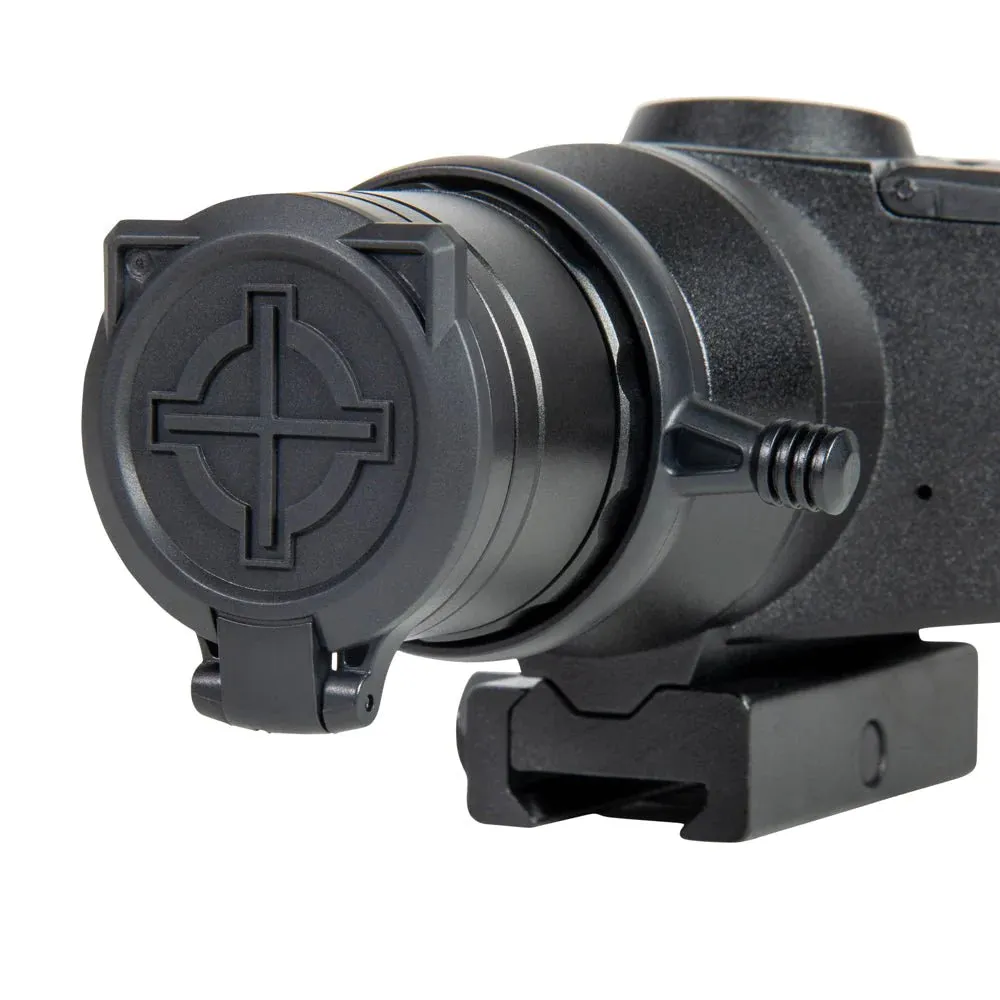

- Flip-up covers (front and back)
- Removable throw lever
- Fixed picatinny mount

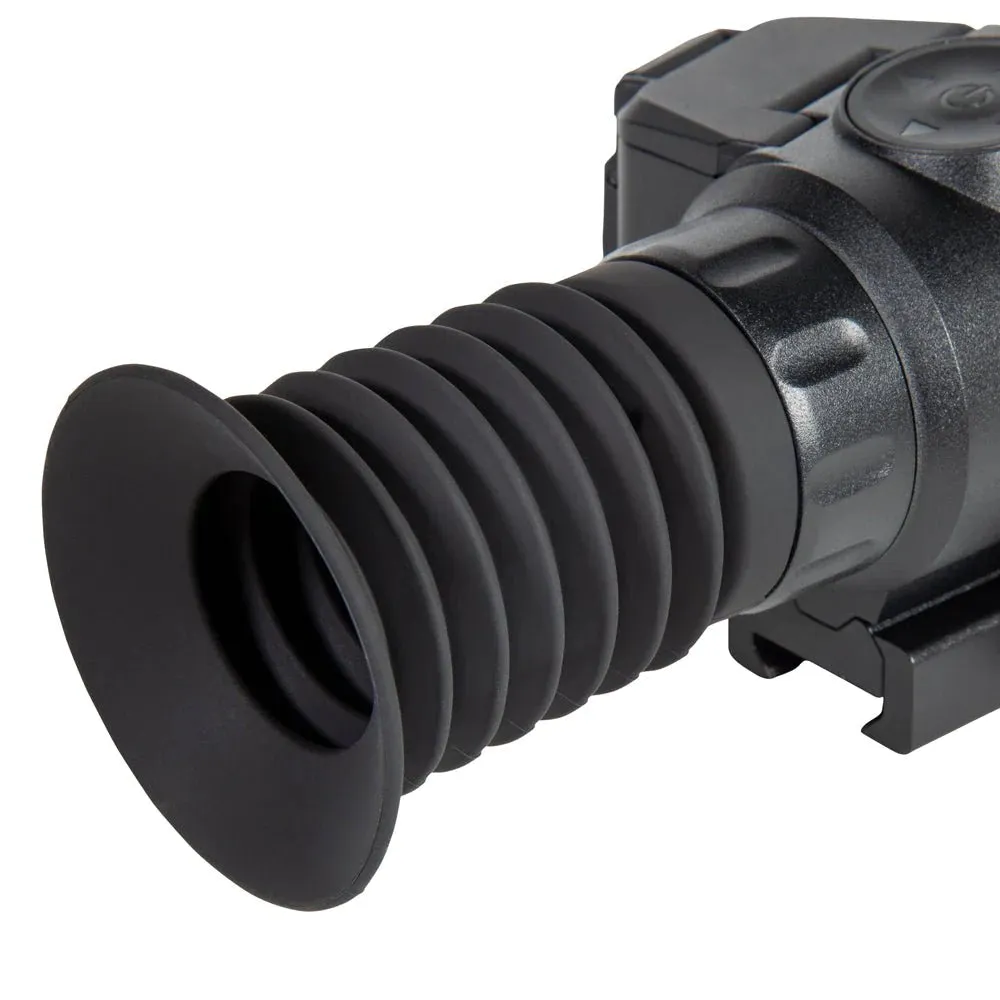

- Rubber eyecup
- 2xCR123A
- USB cable
Specifications
Specifications
| Sensor resolution | 384x288 |
| Pixel pitch (µm) | 17 |
| Spectral range (µm) | 8-14 |
| NEDT (50Hz, 300 K, F/1) (mK) | 40 |
| Display type | OLED |
| Display resolution (pixels) | 1024x768 |
| Objective lens diameter (mm) | 35 |
| Aperture | F1 |
| Magnification (x) | 2x optical |
| Digital zoom | 1-8x |
| Field of view (degrees) | 13 |
| Detection range (yds) | 1400 |
| Eye relief, in/mm | 2.4/60 |
| Diopter adjustment, dptr. | -3 to 3 |
| Video/Audio recording | Yes |
| Maximum memory card supported, GB | 256 |

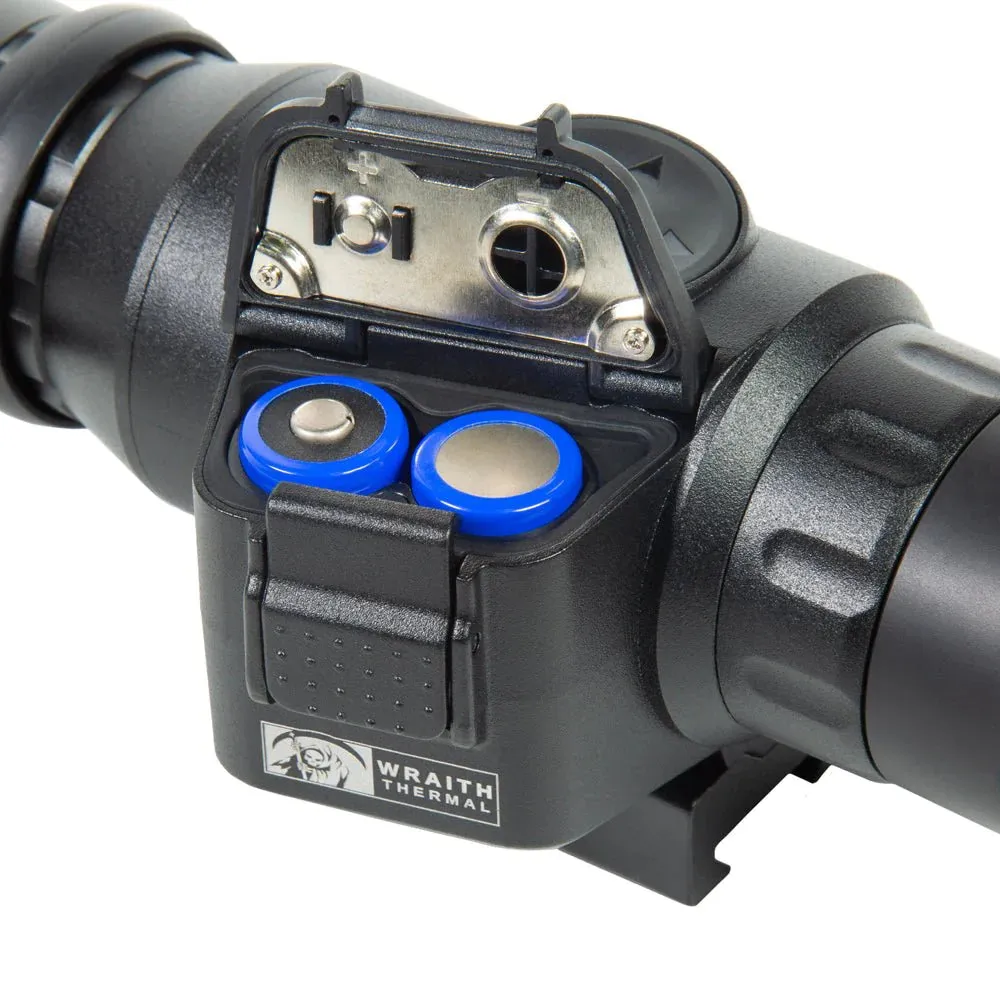

| Battery type | 2xCR123 |
| Battery life (hrs in Preview Mode) | 4.4 |
| Battery life (hrs in Video Mode) | 3.5 |
| Body material | Aluminum |
| Caliber rating | .308 Winchester |
| Operating temperature range | -20C to 50C |
| Dimensions (in) | 6.6 x 3.0 x 2.9 |
| Weight (oz) | 19.3 |
