A&E SPECIFICATIONS
- The fan panel for installation on the rack rear door shall be Lowell Model _____. The 15.25 in. x 5 in. x 2 in. assembly shall be 16 gauge steel finished in black powder epoxy paint. It shall include two 4.7 in. diameter fans with guards and a 6-ft. cord with plug. Total airflow shall be 100cfm (31dBA).
- Model FW2-RDT only: The cord shall include an integral thermostat to automatically control fan activation.

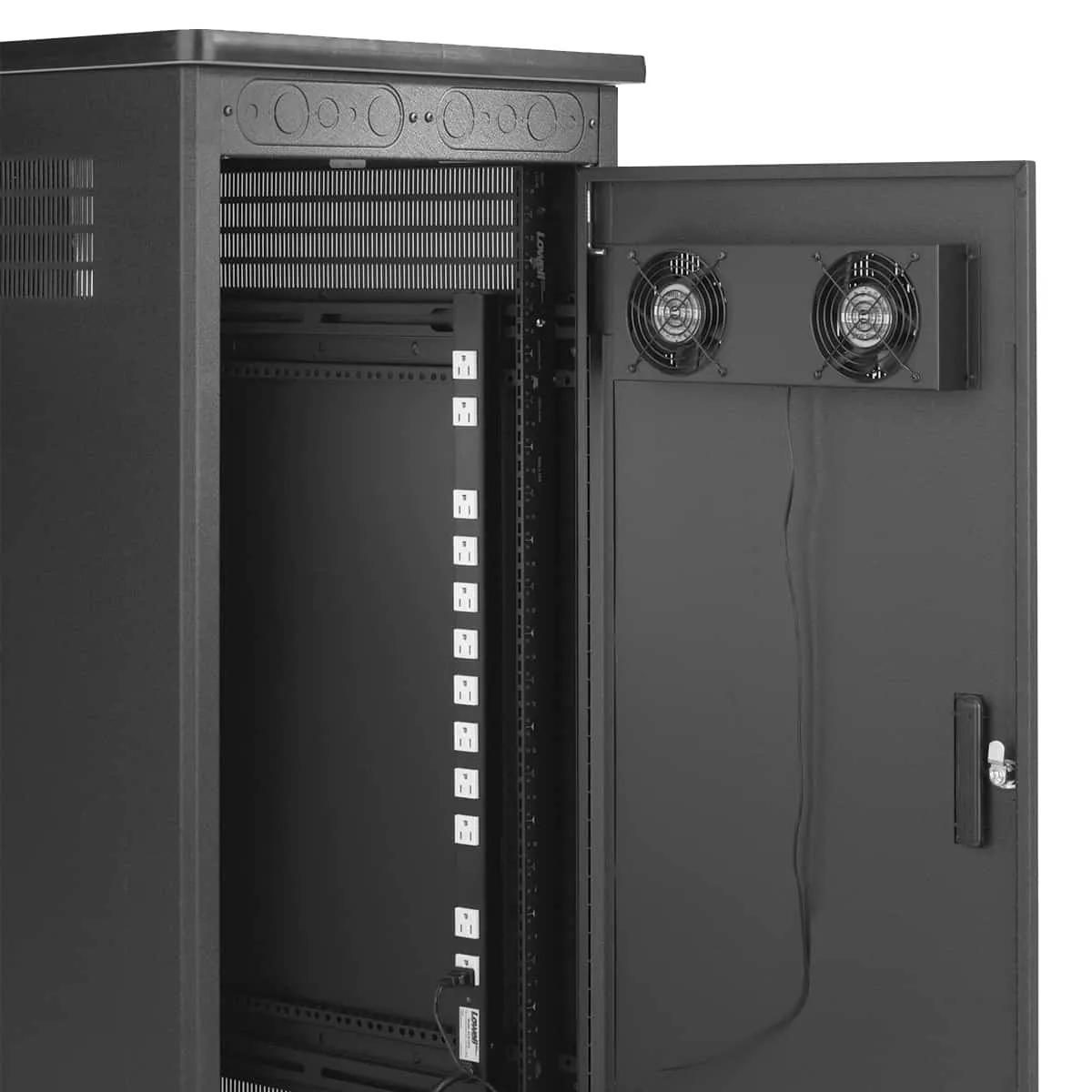

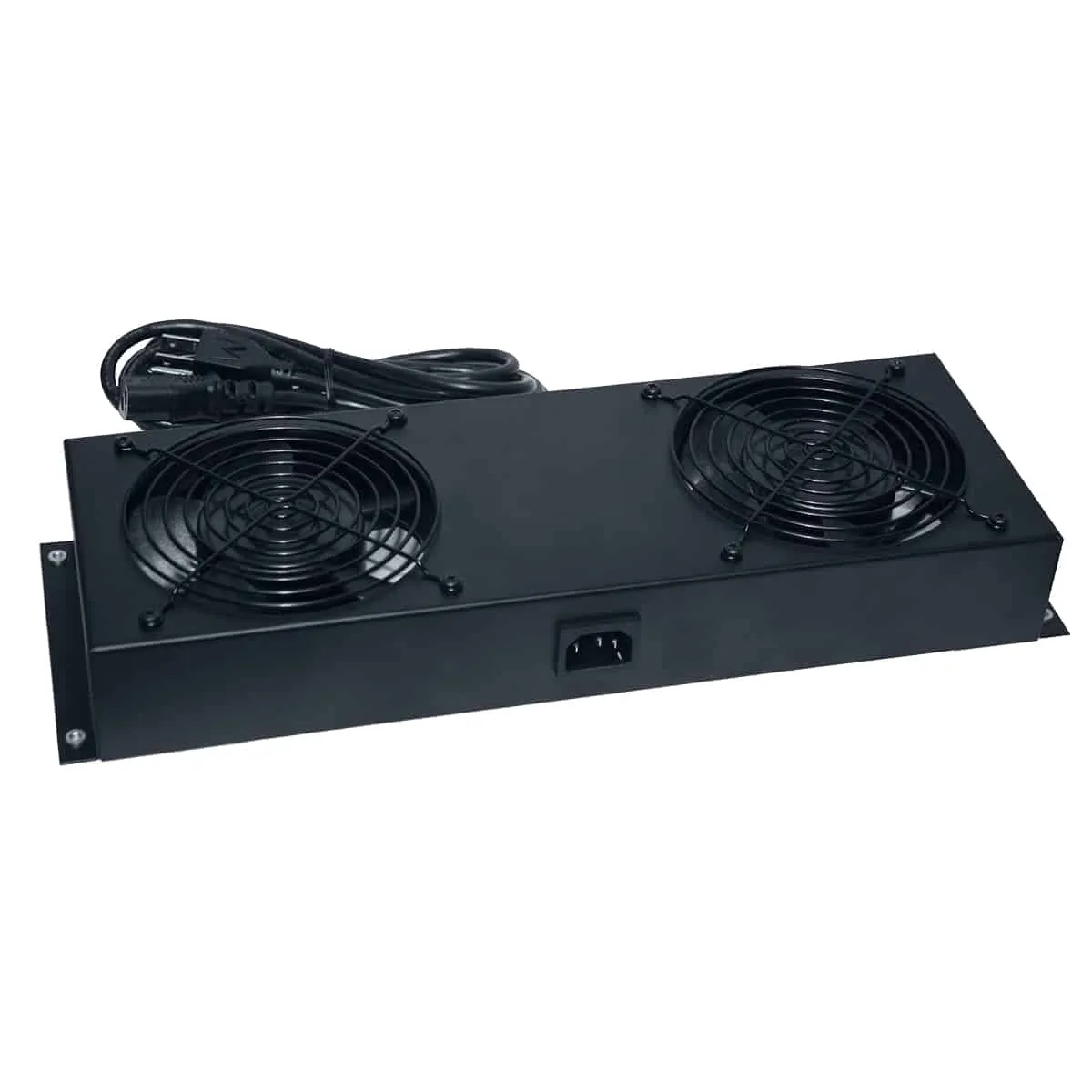

Whisper fans mounted in a chassis sized to fit the rear door of specified Lowell racks. Filters are available as an optional purchase.
FEATURES
- Chassis: 15.25 in. x 5 in. x 2 in.
- Fan Diameter: 4.7 in.
- Fan Quantity: 2
- Noise Rating: 31 dBA
- Total Airflow: 100 cfm
- Guards
- Power Required: 11 watts

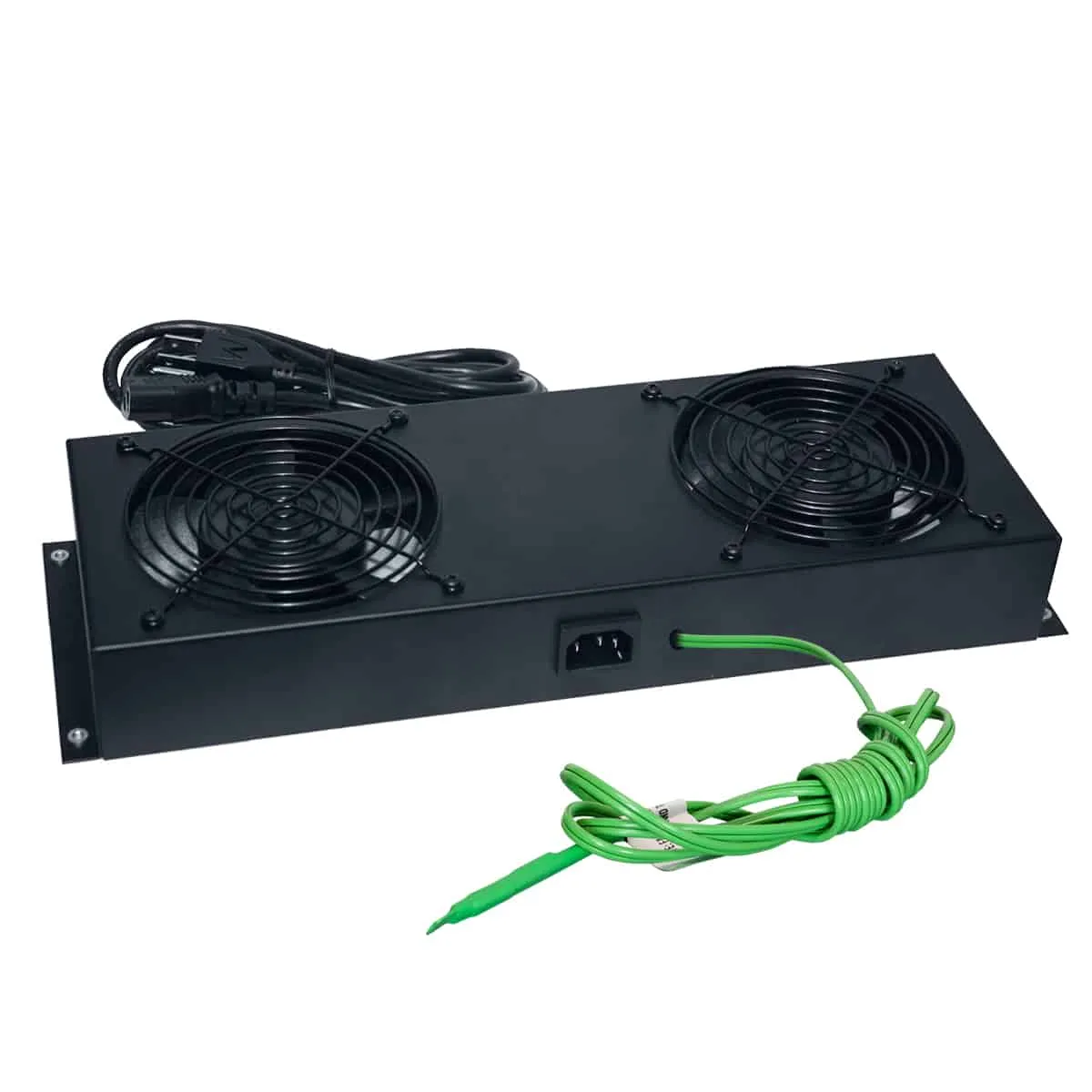

- Choose standard cord or thermo-cord with built-in thermostat to control fan operation
TECHNICAL DOWNLOADS
- Spec sheet:
- Spec sheet:
- Instructions:
OPTIONS (order separately)
- FW-FF: Filter for 4.7 in. dia. whisper fan
