Overview

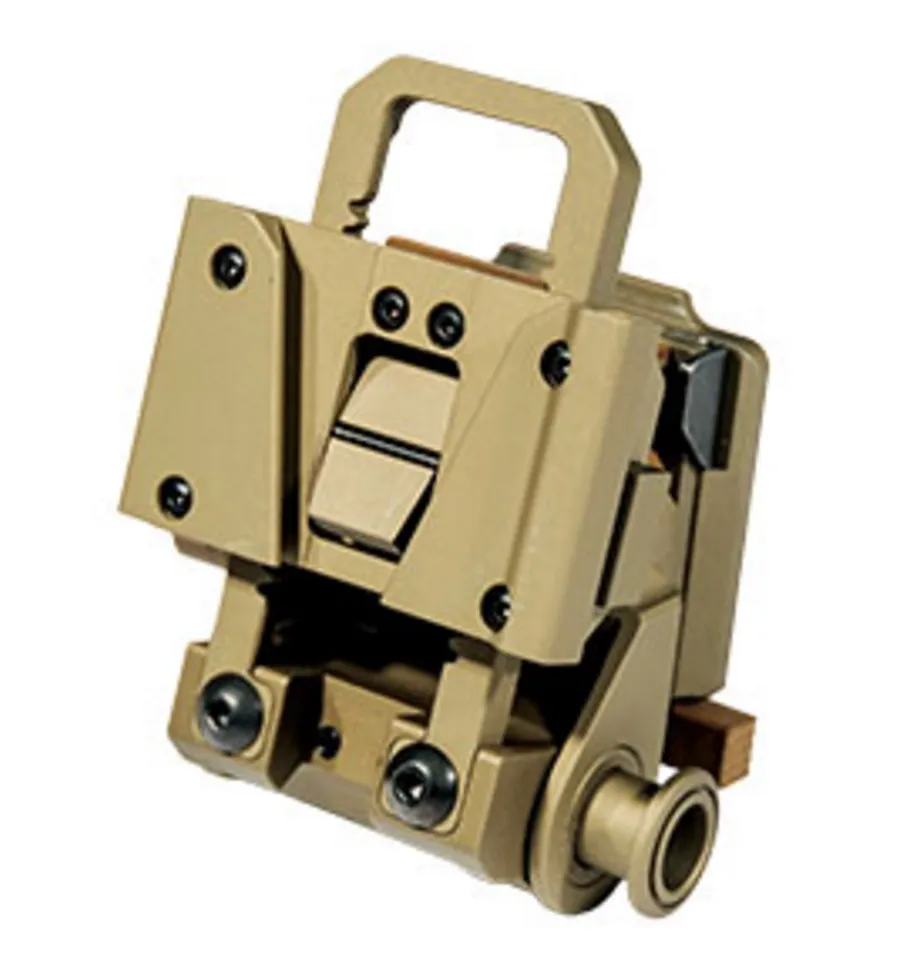

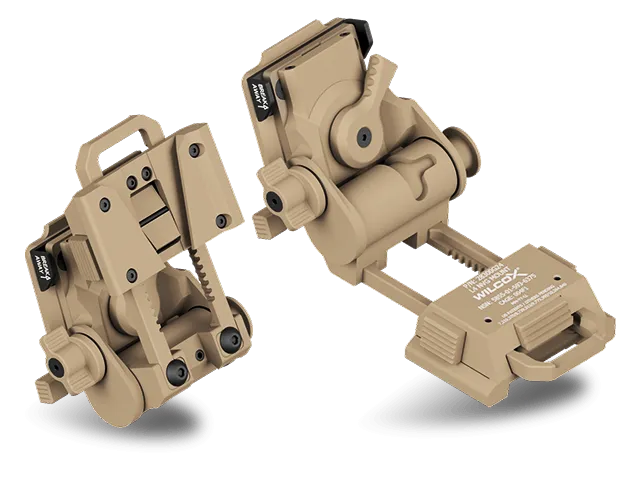

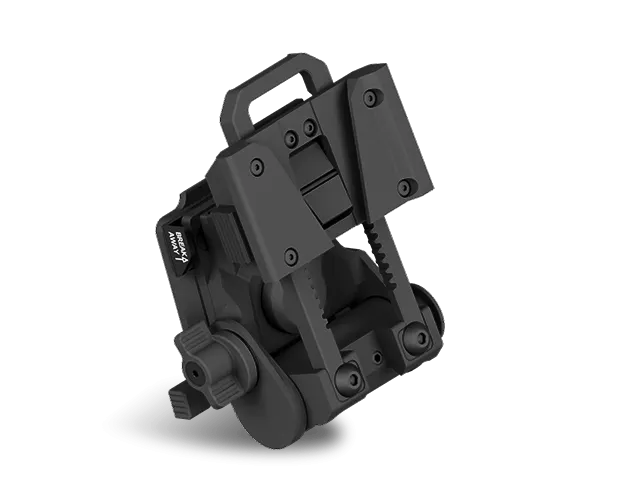

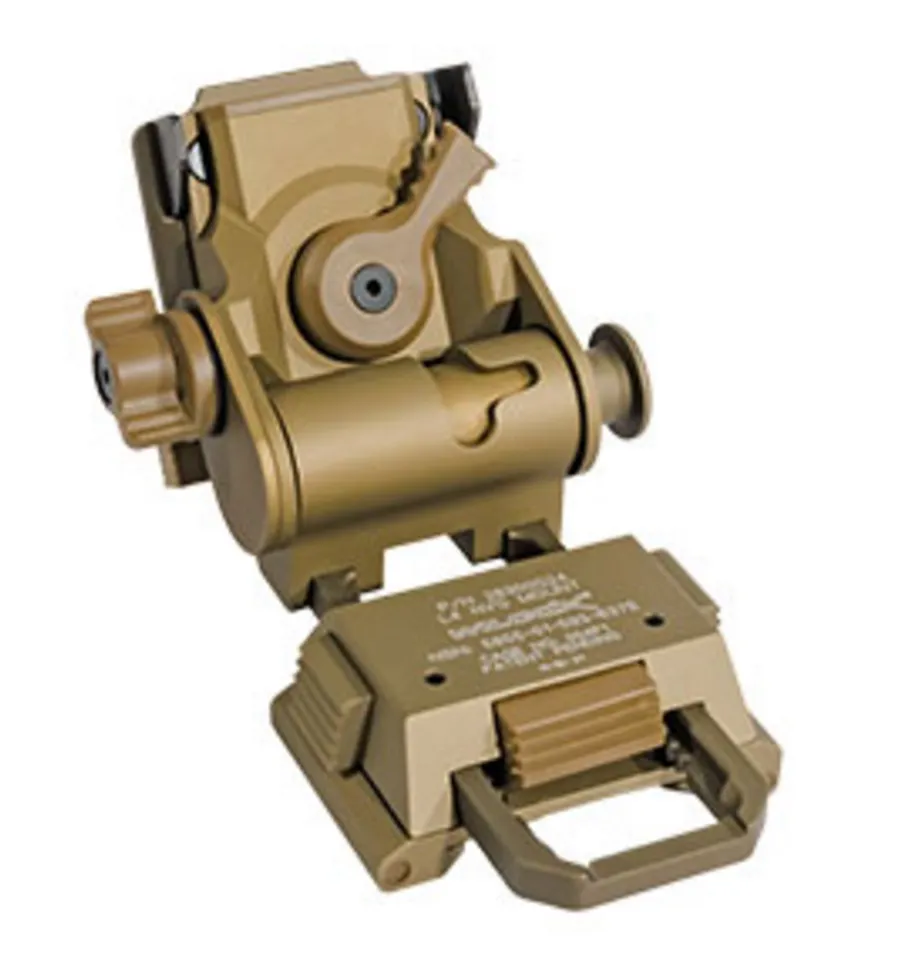

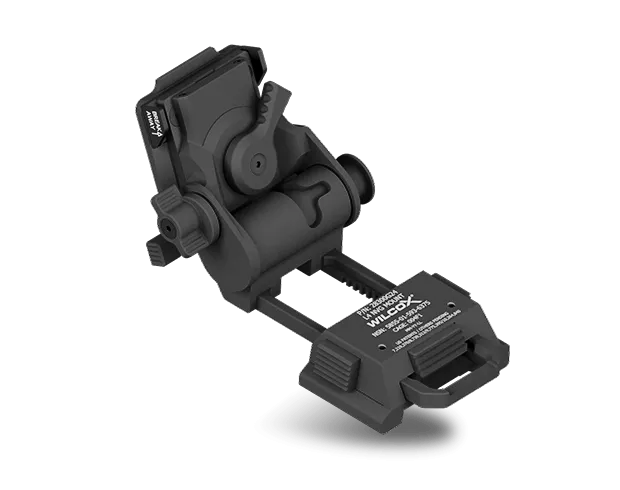

The Wilcox L4 G24 Low Profile Breakaway Mount allows firm attachment of a variety of NVGs to a MICH/ACH helmet using an Ops-Core VAS or standard Army shroud. This NVG mounting system allows the mount to "break away" from the base under a stressed condition, such as when prompted by interference during fast roping, maritime operations, hard impact or when entering or exiting mobility platforms. Without the Wilcox breakaway feature, the potential for induced neck injury and NVG breakage are increased. The Wilcox L4 G24 NVG Mounting Systems Product Line is featured with a wide range of adjustments to customize the position of the Night Vision Goggle for proper eye position, and provide a maximum low profile position to the helmet.
Features
L4 G24 Mount Features
- Lock Release Lever allows NVG height to be easily adjusted up or down, then secured.
- A Breakaway Release Lever allows the operator to easily set the desirable mode (breakaway or locked), depending upon operational needs.
- An ergonomically placed Flip Release Button allows the Mount to “flip up” to a stowed position when the goggle is attached.
- A Tilt Adjustment Knob allows the operator to fine adjust the tilt angle of the NVG.
- A Mount Release Lever allows attachment and removal of the mount.
- A Fore/Aft Release Lever allows for fore/aft travel of the goggle. Releasing the lever allows the operator to set the fore/aft position of the goggle.
- An ergonomically placed NVG Release Button allows for one handed release of the NVG.
- A Three Hole Shroud with Lanyard fits MICH/ACH and Crye Airframe style helmets.
Specifications
- Dimensions (Operational) - 3.98” L x 2.60” W x 2.40” H
- Weight (G24 Mount Only) - .36 lb (5.76 oz)
- Weight (Shroud Only) - .10 lb (1.6 oz)
- Material Construction - Light Weight, Aerospace Grade Metal
- Accommodates NVG - AN/PVS-7B and 14 (Both Require Optional Hardware), 7A, 7C, 15, and 18
- Vertical Height Adjustment - .900” Total Travel
- Fore/Aft Travel - 1.10” Total Travel
- Dovetail Mount
