| Product Attribute | Attribute Value |
|---|---|
| Air Flow | 12412 CFM |
| Bearing Type | Ball |
| Configuration | Round |
| Current Rating | 1 A |
| Dimensions | 11" Dia. x 4.92" (280 mm Dia. x 125 mm) |
| Fan Type | AC |
| Frequency | 50 Hz |
| Material | Metal |
| Maximum Operating Temperature | 40 °C |
| Minimum Operating Temperature | -25 °C |
| Noise Level | 76 dBA |
| Power Rating | 225 W |
| Primary Type | Fans |
| Rotation | CW |
| Series | |
| Size | 11 x 4.92 (280 x 125) In. (mm) |
| Size, Fan | 11 x 4.92 (280 x 125) In. (mm) |
| Speed | 2700 RPM |
| Termination | Wire Leads |
| Voltage Rating | 230 VAC |
| Weight | 3 kg |
Overview

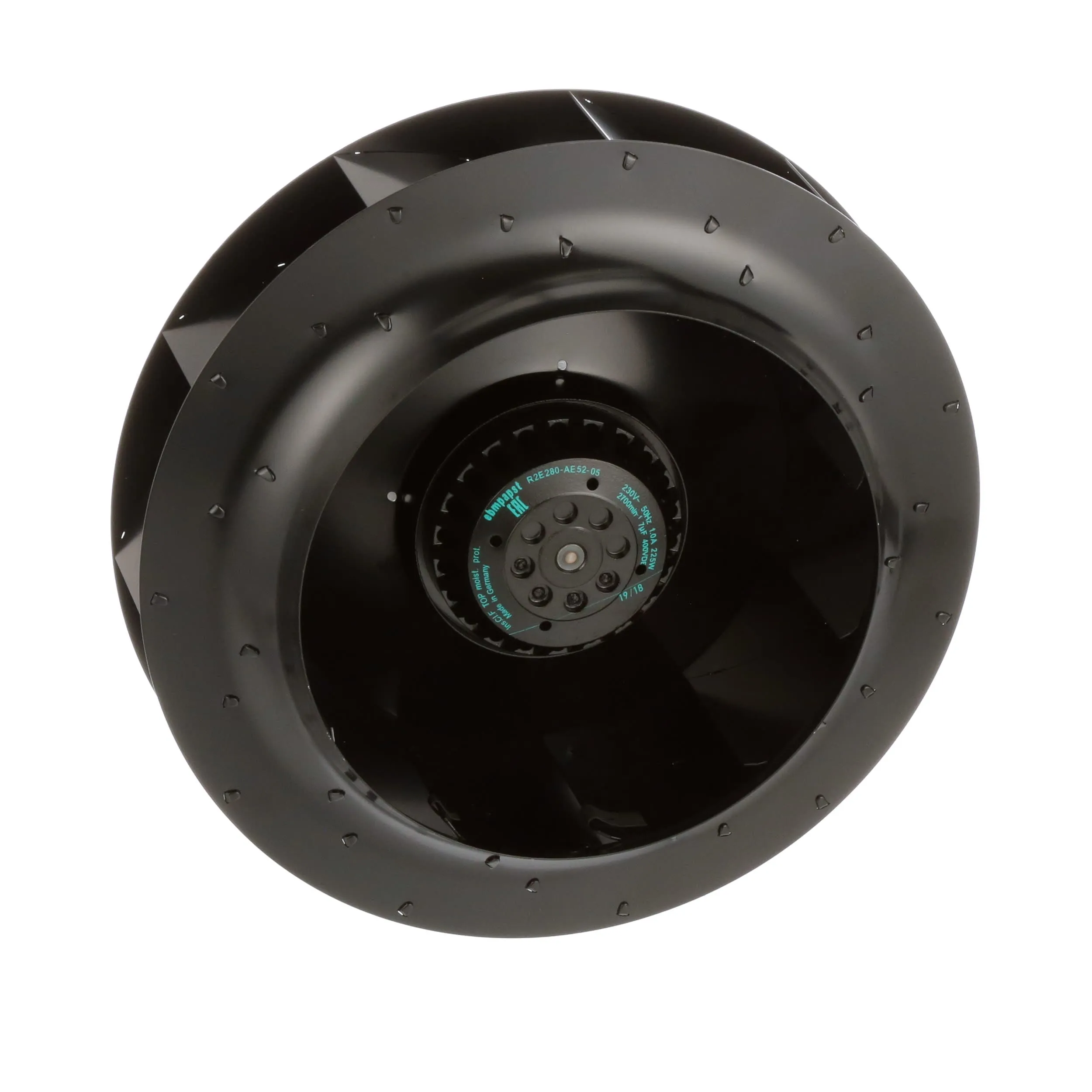

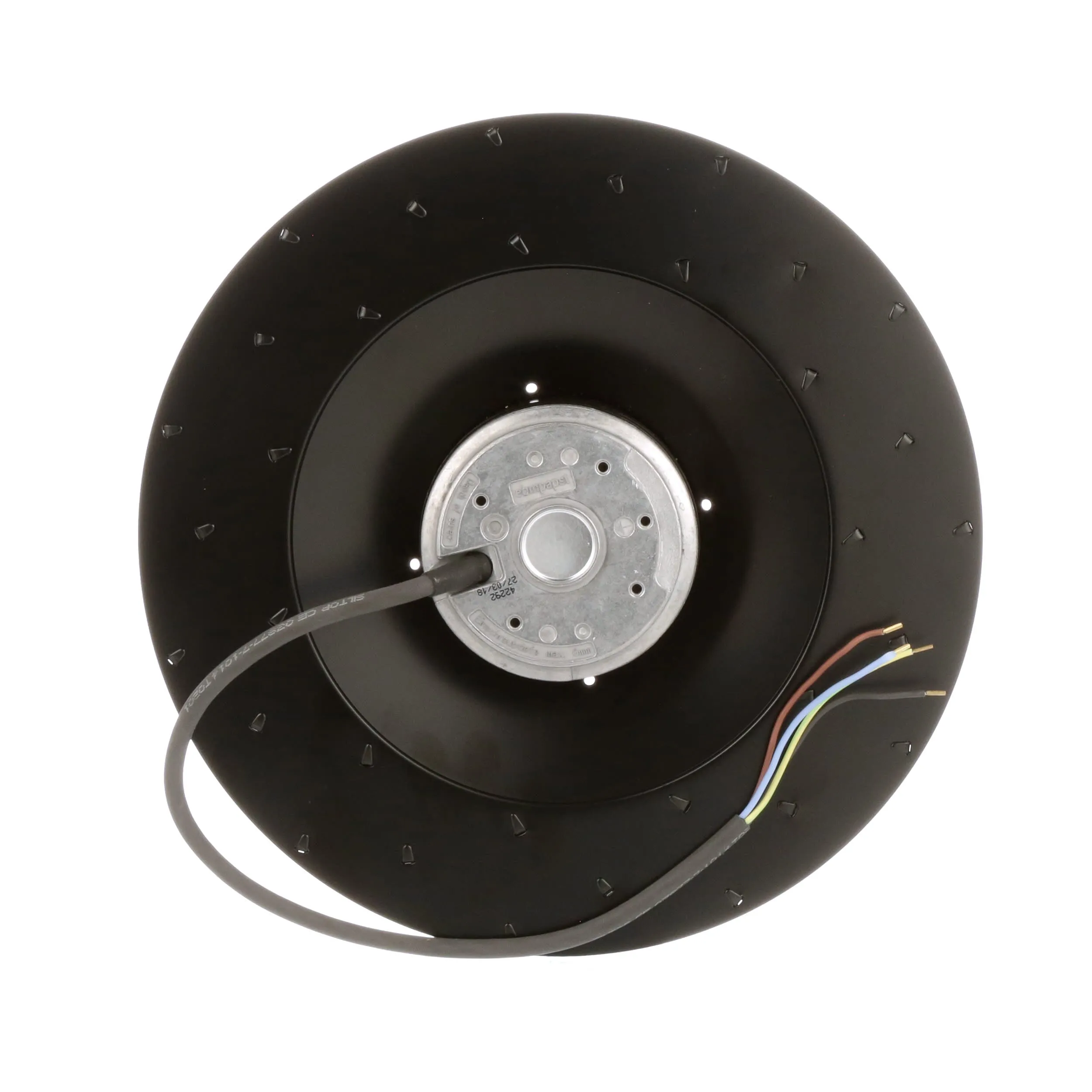

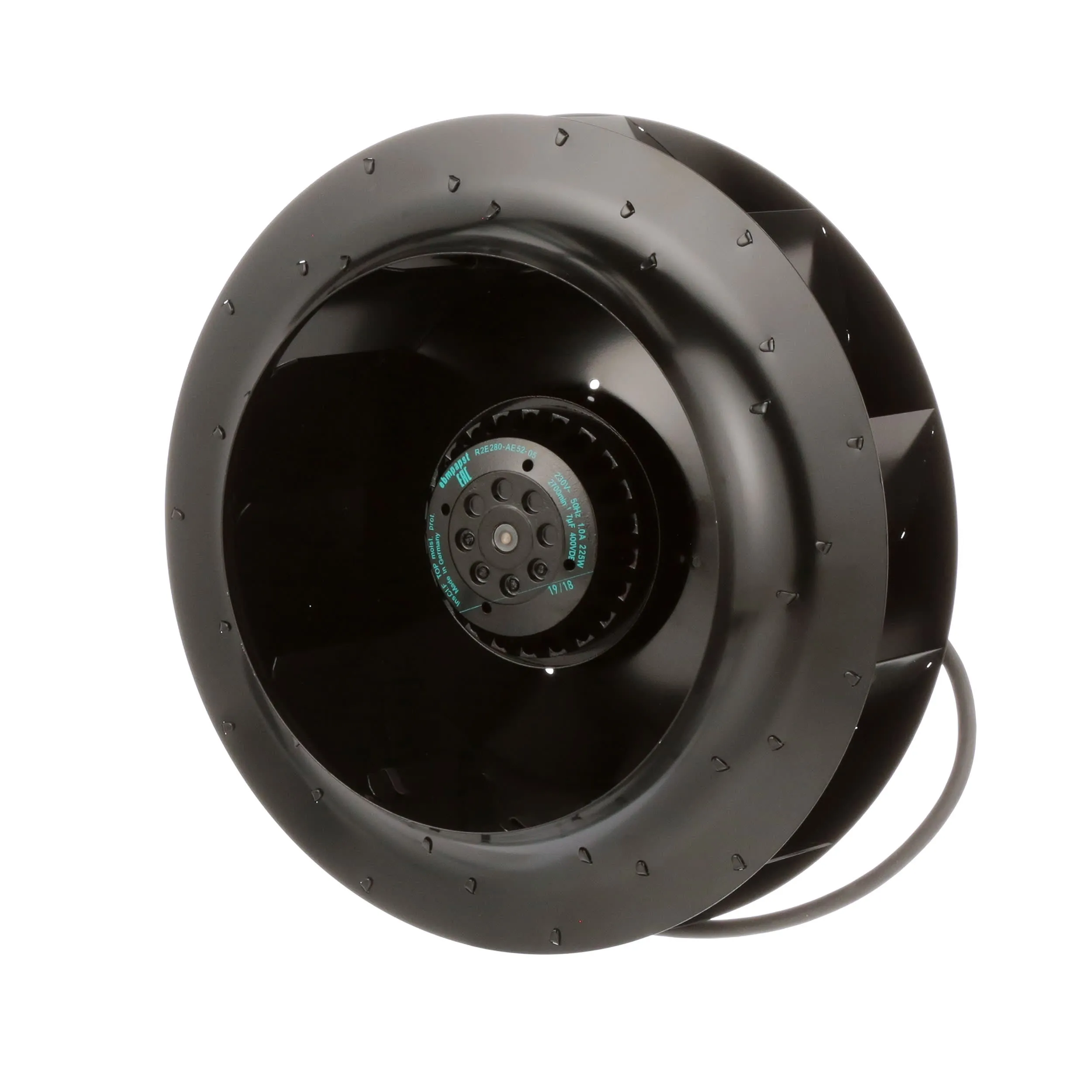

ebm-papst R2E280 Series — AC Centrifugal Fans | Backward Curved, Single Inlet:
ebm-papst Centrifugal AC Fans featuring backward curved blades are an ideal solution to a wide range of application requirements and are ideally suited for intake suction use. These impellers are highly resistant to dust, dirt, and other contaminants, making them hydraulically efficient.
Features:
